Traction Feeder Junction Box

Note: this design was never implemented as another solution was found.

Design of junction box to connect traction feeder cable from switchboard to power rails.

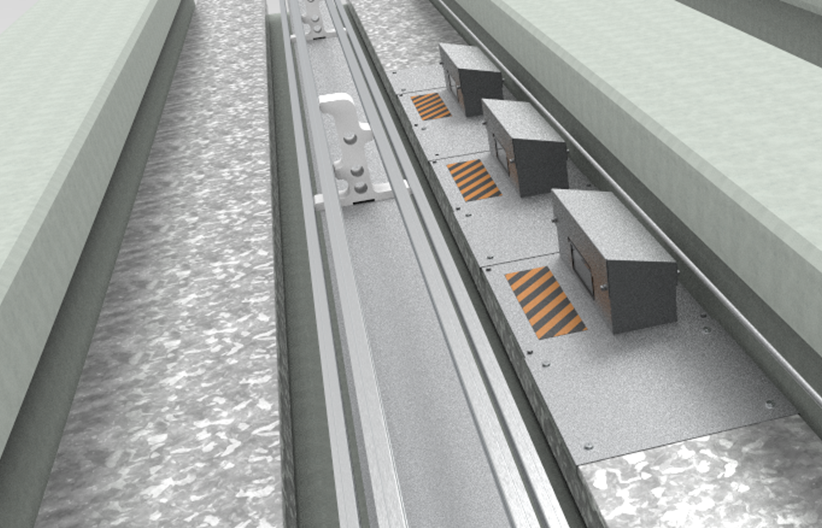

Render of junction boxes installed over galvanised trunking which carries traction feeder cables

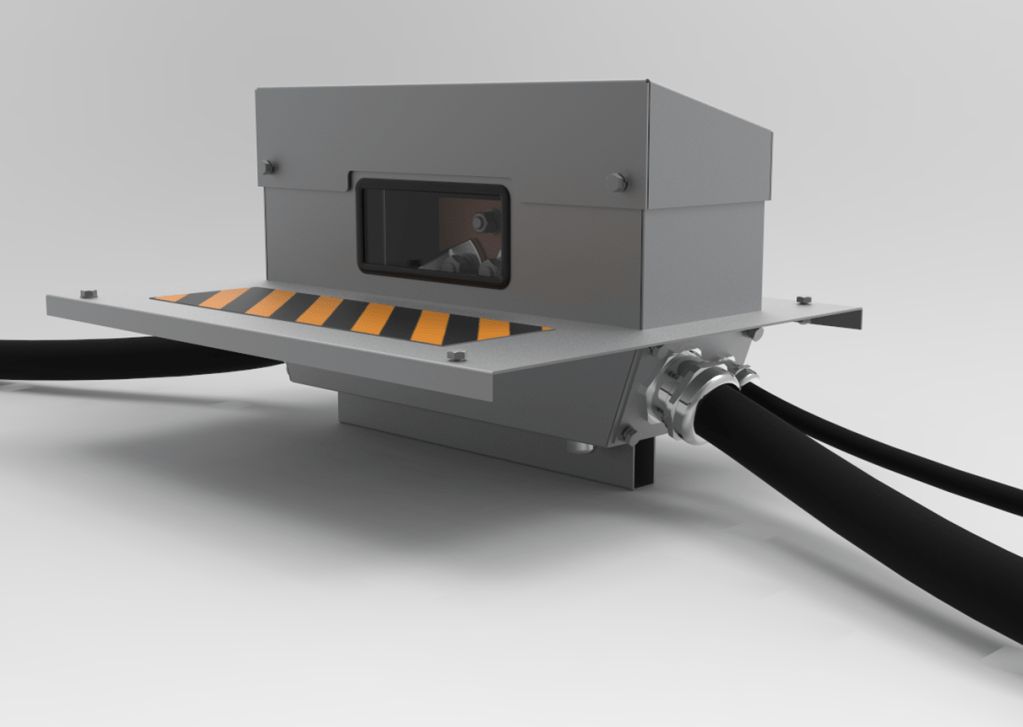

Render of traction feeder junction box
Render of traction feeder junction box

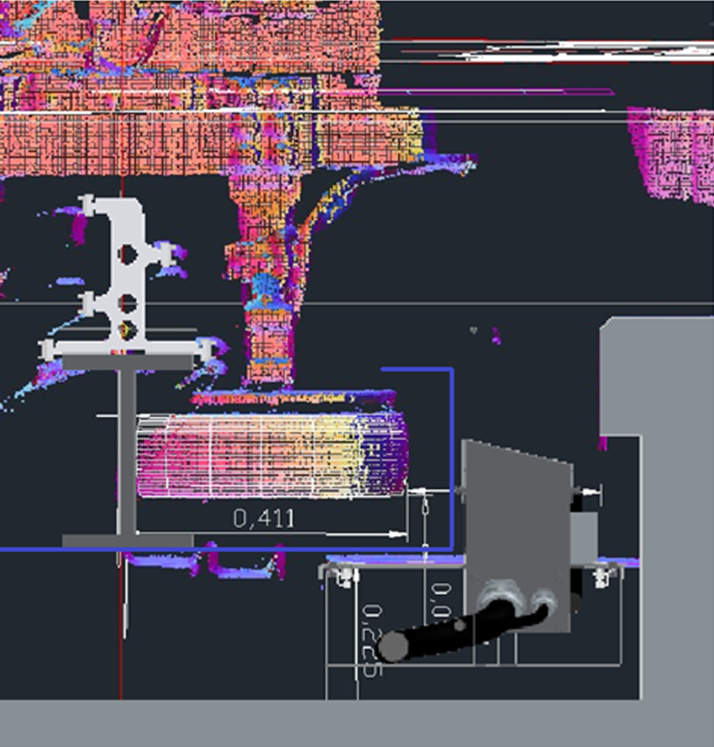

3D scan of vehicle underframe and guiderail with 3D model of junction box super-imposed to show gauge clearance

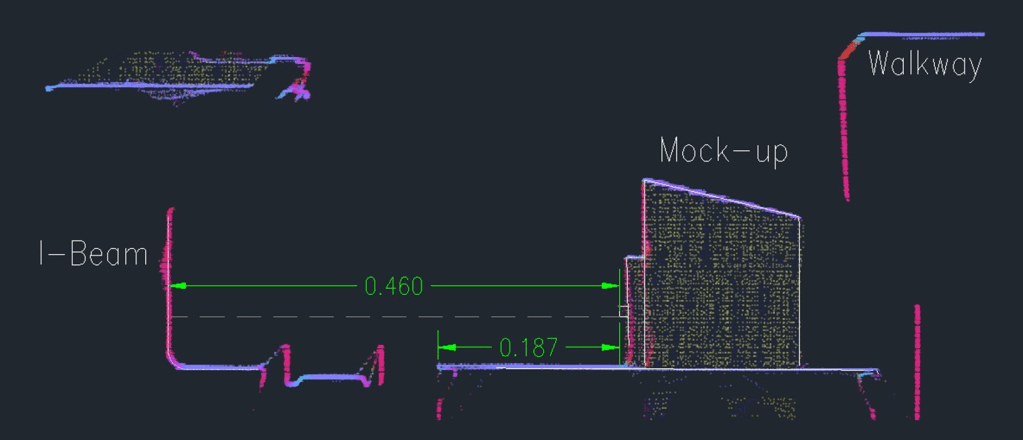

3D scan of mock-up junction box installed in position showing clearance from guidebeam
